Buffalo TeraStation 7120r Rack12x3TB

TeraStation 7120r Enterprise is a high performance 12-drive network storage solution ideal for businesses and demanding users requiring a reliable RAID based NAS and iSCSI storage solution for larger networks and business critical applications. With the powerful quad-core processor, TeraStation 7120r Enterprise provides exceptional performance during file transfers and everyday NAS functions: experience maximum network throughput while multiple replication and backup jobs run in the background and remote users are accessing content.

12-bay 2 U rack mount

12 enterprise-class SATA hard drives

Quad Intel NICs

10 Gig NIC support

6 USB 2.0 ports

Redundant hot plug PSUs and fans

2 PCI-Express expansion slots

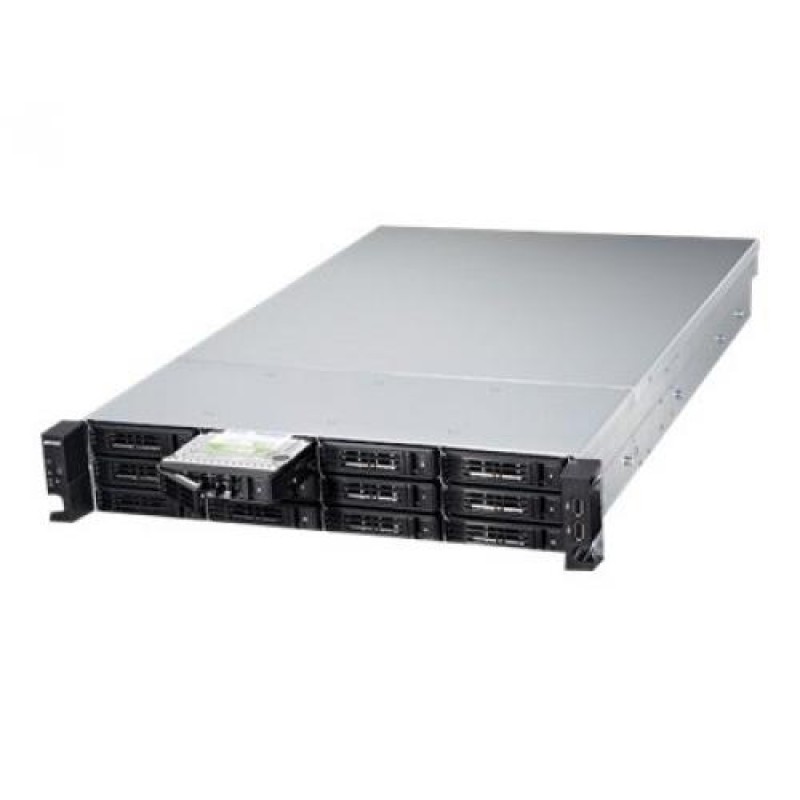

Hot-swap hard drives

Hot spare

RAID 0/1/5/6/10/51/61/JBOD (individual disks)

Active Directory integration

DFS namespace support

Share quota support

Real-time replication to other TeraStation devices

Failover support

Simultaneous NAS and iSCSI target functionality

Remote file access via WebAccess and FTP/SFTP

TeraStation NAS system

TeraStation 7120r Enterprise runs on Buffalo's TeraStation NAS system, providing a host of business-class features from network file sharing and security to RAID management, remote access and more. Managing data, backups and data sharing in a production environment or larger business is made easy with this NAS operating system.

High performance

TeraStation 7120r Enterprise features 12 enterprise-class hard drives, providing exceptional performance during file transfers and everyday NAS functions. TeraStation 7120r Enterprise runs many services simultaneously and the quad core processor enables the ability to focus on concurrent tasks with minimal performance degradation: experience maximum network throughput while multiple replication and backup jobs run in the background and remote users are accessing content.

Reliable and secure network storage

TeraStation 7120r Enterprise offers high capacity, highly available storage accessible among multiple platforms for seamless centralized storage and backup. Create user and group profiles and control folder and file access to protect business critical content and privacy. Support for multiple levels of RAID provides continuous data protection and increased fault tolerance and data availability.

Data protection and backup

TeraStation 7120r Enterprise features Buffalo's replication technology providing easy and high performance data replication from one Buffalo NAS device to another Buffalo NAS device over the network or the Internet. This offers real-time synchronous replication of data, providing easy, continuous data protection in the event of data loss. If your system configuration includes data replication from one TeraStation 7120r Enterprise unit to another, you can set up failover to automatically switch main operation over to the redundant TeraStation if the main unit ever becomes inaccessible.

Surveillance video management

TeraStation 7120r Enterprise offers a video surveillance asset management platform that allows you to record high quality video and store and manage it for easy access and playback. Buffalo surveillance video manager powered by SoleraTec provides advanced forensics-based video lifecycle management that helps you manage and protect your video assets with ease. Support for up to 50 RTSP (Real Time Streaming Protocol) IP-based video surveillance camera allows users to directly capture, manage and store camera feeds, enabling playback of live and stored video.

Storage virtualization

Configure TeraStation 7120r Enterprise as an iSCSI target to add affordable virtualized storage to your business network. Storage virtualization serves to decrease IT spending by maximizing the resources offered by modern servers while providing affordable server scalability and reliability. A virtualized environment removes a significant amount of server dependence, shifting the burden to the storage devices.

Remote file access

TeraStation 7120r Enterprise offers multiple ways to remotely access and share your important data for enhanced collaboration and productivity. With WebAccess and FTP/SFTP servers, you can securely access and share files with anyone outside the local network. Trusted recipients can access selected files from anywhere over the Internet and with WebAccess files can also be accessed remotely from tablet and smartphone devices.

BUFFALO TeraStation 7120r Enterprise - NAS server - 12 bays - 36 TB - rack-mountable - SATA 6Gb/s - HDD 3 TB x 12 - RAID 0, 1, 5, 6, 10, JBOD, 51, 61 - RAM 8 GB - Gigabit Ethernet - iSCSI - 2U

Basic Specifications

Manufacturer's Part Number: TS-2RZH36T12D-EU
EAN: 4981254009338
Product Description: BUFFALO TeraStation 7120r Enterprise - NAS server - 36 TB
Device Type: NAS server
Networking: Network adapter 10Mb LAN, 100Mb LAN, GigE
Weight: 25 kg
Dimensions (WxDxH): 48 cm x 73.6 cm x 8.8 cm
Manufacturer Warranty: 3 years warranty
Power: AC 120/230 V (50/60 Hz)
RAM: 8 GB
Processor: Intel Xeon E3-1200 series E3-1275 3.4 GHz (Quad-Core)
Hard Drive: 12 x 3 TB SATA 6Gb/s
Enclosure Type: Rack-mountable - 2U
Power Redundancy: Yes
Storage Controller: RAID SATA 6Gb/s - RAID 0, 1, 5, 6, 10, JBOD, 51, 61
System Requirements: Microsoft Windows 2000 Server, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003, Apple MacOS X 10.5 or later, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)
Installed Devices / Modules Qty: 12 (installed) / 12 (max)
Max Supported Capacity: 48 TB
Total Storage Capacity: 36 TB
Host Connectivity: Gigabit Ethernet

Software / System Requirements

Software Included: SoleraTec Phoenix RSM (1 license), NovaBACKUP Business Essentials v14 (10 licences)
OS Required: Microsoft Windows 2000 Server, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003, Apple MacOS X 10.5 or later, Microsoft Windows Server 2008, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Windows 8 (32/64 bits), Windows 8.1 (32/64 bits)

Environmental Parameters

Min Operating Temperature: 5 °C
Max Operating Temperature: 35 °C
Humidity Range Operating: 20 - 80% (non-condensing)

Miscellaneous

Features: UPS support, device-to-device data replication

Networking

Type: Network adapter
Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE
Network / Transport Protocol: TCP/IP
Remote Management Protocol: SNMP, HTTP, HTTPS
Network Services Compatibility: Microsoft Active Directory (AD), Microsoft CIFS, Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS
Features: LDAP support, print server, DFS support, web server, iTunes server, FTP server, Buffalo Web Access, BitTorrent Client, DLNA Media Server, Apple Time Machine compatible, e-mail notification, NTP time synchronisation, redundant hot swappable fans

General

Device Type: NAS server
Host Connectivity: Gigabit Ethernet
Enclosure Type: Rack-mountable - 2U
Total Storage Capacity: 36 TB
Installed Devices / Modules Qty: 12 (installed) / 12 (max)
Width: 48 cm
Depth: 73.6 cm
Height: 8.8 cm
Weight: 25 kg

Expansion / Connectivity

Expansion Bays: 12 (total) / 0 (free) x hot-swap
Expansion Slots: 2 (total) / 2 (free) x PCI Express

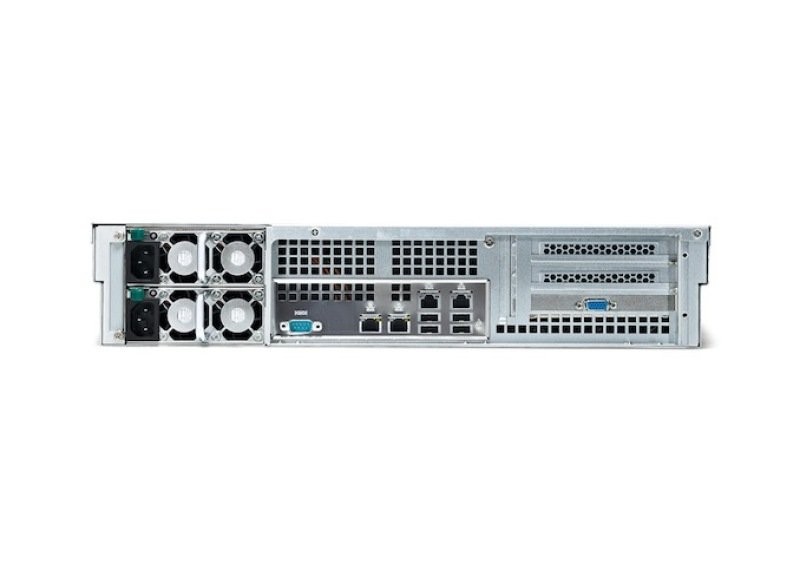

Interfaces: 4 x Ethernet 1000Base-T - RJ-45 ¦ 6 x USB 2.0 - Type A ¦ 1 x serial - DB-9 ¦ 1 x VGA (management)

Manufacturer Warranty

Service & Support: Limited warranty - 3 years

Power

Power Device: Internal power supply
Installed Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 250 Watt

Storage Controller

Type: RAID
Interface Type: SATA 6Gb/s
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 51, RAID 61

Hard Drive

Type: HDD - hot-swap
Capacity: 12 x 3 TB
Interface Type: SATA 6Gb/s

Processor / Memory

Processors Installed: Intel Xeon E3-1200 series E3-1275 3.4 GHz
Number of Cores: Quad-Core
RAM: 8 GB DDR3
